Single Family Residence 1: CMU Construction - Building Plan

Included in this package is an PDF file of a full set of drawings, 3D Floor Plan, Exterior Rendering, and an editable CAD file.

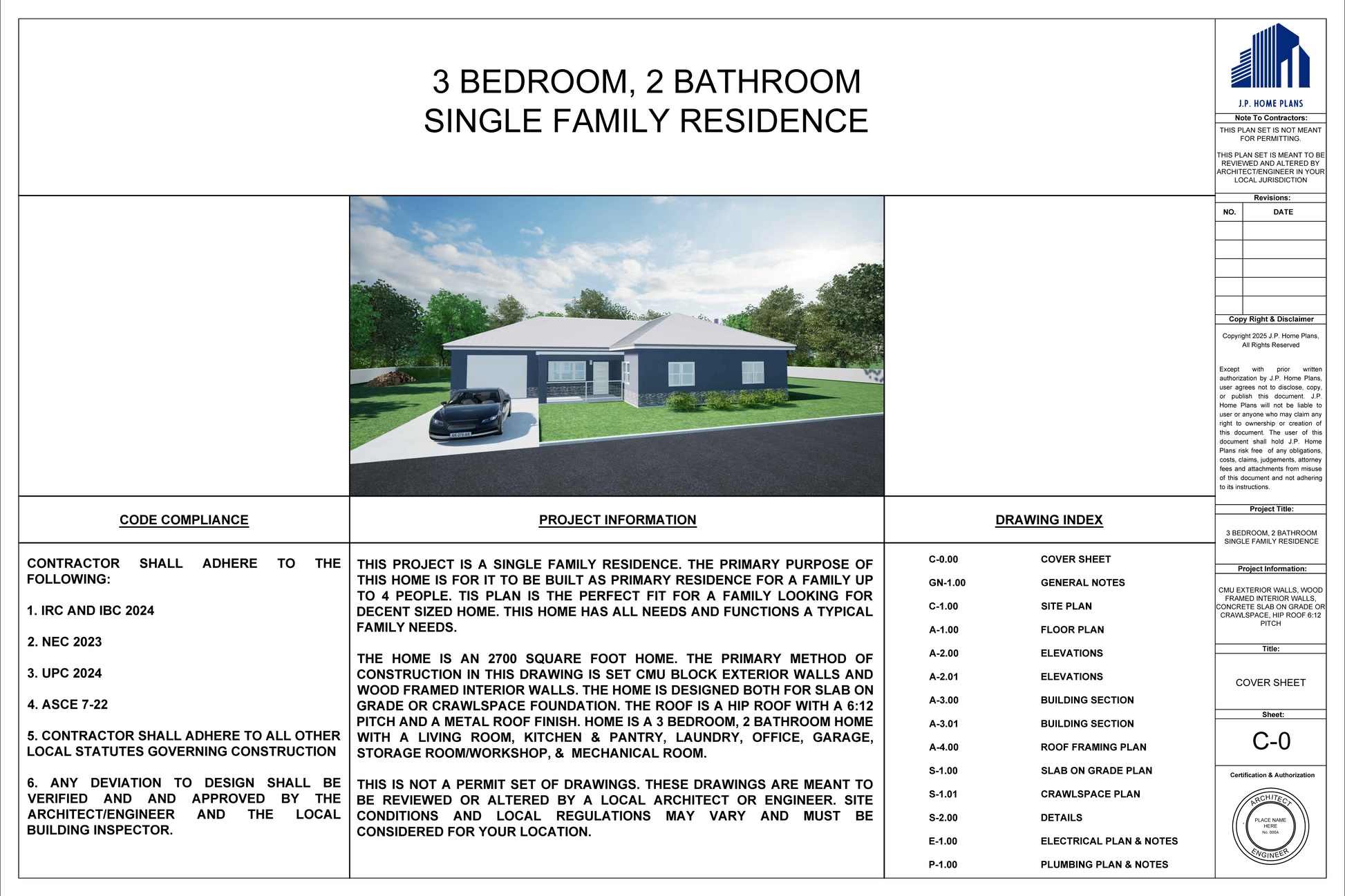

This plan contains the following: Floor Pan, Plumbing Plan, Electrical Plan, Roof Plan, Foundation Plans, Elevations, Sections, & Structural Details.

This project is a single family residence. This home is an 3 Bedroom, 2 Bathroom home. Standard Kitchen & Living Room. Additional rooms in the home include an Office, Pantry, Laundry & Mechanical Room, Workshop/ Storage Area, & Garage. At 2700 Square Foot including the garage, this design is perfect if your are looking for a standard and functional home.

Disclaimer: This plan set is not meant for building permitting. Must be reviewed by architect or engineer in your local area.
